GENERAL
We supply concrete reinforcing bars designed with improved strength, tensile strength, fatigue strength, and adhesion to concrete. The bars are commonly deformed with ribs. The ribbed steel rod can improve bonding to the concrete and minimize any concrete cracking that may occur as a result of concrete shrinkage. In practical uses, the steel bars can be fabricated in forms like cage / pipe or mesh. Rebar welded concrete reinforcement mesh rolls and panels offer fixed structure and easy uses compared with traditional tied rebars. Rebar cage is a spot welded steel reinforcement structure deformed in pile cages or pipe shapes. This reinforcing wire / bar cages are used for big-span concrete constructions.
Finishes: Plain carbon black, galvanized, hot dipped steel
Fittings for Reinforcing Steel:
Rebar ties
Bar Support Chair
Slab Bolsters
Reinforced Steel Bar:
Standard:
GB1499.2-2007,HRB335,HRB400
ASTM A615 GR40,GR60,etc
BS4449/1997,etc
Diameter ranges:6mm-40mm
Rebar length: 6m, 8m, 9m, 12m as standard
SPECIFIC PRODUCTS

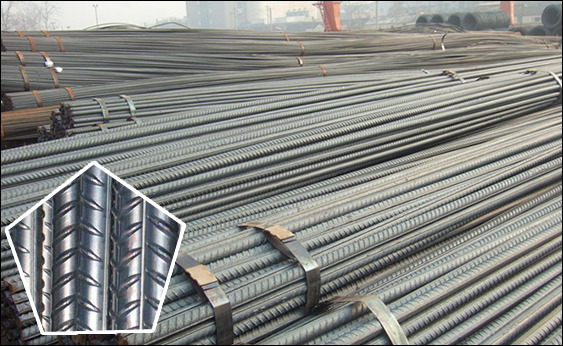

Hot Rolled Deformed Reinforcing Steel Bar
Deformed rebar with spiral ribs
Hot rolled deformed rebar BS standard or other international standard.
The minimum elongation 12%
Sizes we supply as following:
- Hot Rolled Ribbed / Deformed Steel Bar 10mm x 6mm
- Hot Rolled Ribbed / Deformed Steel Bar 12mm x 6mm
- Hot Rolled Ribbed / Deformed Steel Bar 16mm x 6mm
- Hot Rolled Ribbed / Deformed Steel Bar 20mm x 6mm
Steel Billet & Deformed Bar
Steel Billet
Size:
120mm x 120mm x 12m
130mm x 130mm x 12m
125mm x 125mm x 12m
Steel Grades ASTM 615 Grade 40
ASTM 615 Grade 60
GOST 380/89-94
GOST ST 3 S/SP
GOST ST 49S/SP
GOST ST 5S/SP
Billet Size
120 x 120 x 12,000mm
130 x 130 x 12,000mm
125 x 125 x 12,000mm
Chemical Composition:
Carbon 014 - 0.25%
Silicon 015 – 0.35%
Manganese 0.50 – 0.70%
Sulphur and Phosphorus 0.05% (Maximum)
Tolerences
- Side Length Deviation < 4MM Max. From norminal side length
- Difference between Side Lengths <50% of the side length deviation
- Diagonal length Deviation < 6mm from norminal value
- Difference between Diagonal lengths < 50% of the diagonal deviation
- Concavity or Convexity of faces < 3mm max from norminal side length
- Twisting < 1/m
- Camber < 15mm/m (100mm max on the total length)
- Buckling of Extremities < 70mm max. from norminal side length
- Widening of Extremities < 15mm max. from norminal side length
Quality level:
1. Surface shrinkage and secondary shrinkage, surface porosity, separate skin are not allowed.
2. Cracks appearing at surface, scabs, macro-inclusions, laps, double skin, shearing cracks and protruding material are not allowed
3. Scratches, rolling traces, concavities, pin-holes, are allowed for a maximum depth of 2mm
4. Surface cracks and oscillation marks are allowed for a maximum depth of 1 mm.
5. Billets presenting surface defects larger than the above limitations are allowed to be surface conditioned by grinding.
Deformed Bar
Size:
10mm x 12m
12mm x 12m
Exported to
Myanmar

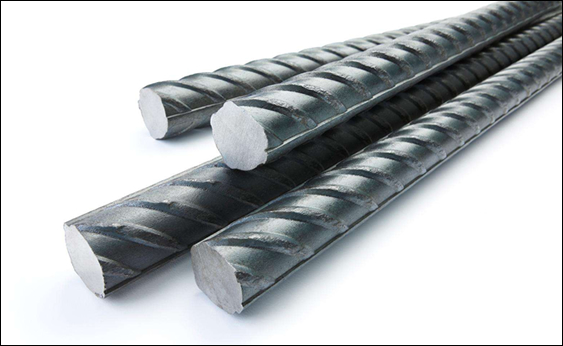

Ribbed Reinforcing Steel Bar
Ribbed Rebar exported to Iran
| Ribbed Reinforcing Steel Bar Specifications | ||
| Size mm | Material Grade/Type | Fy(Kg/cm2) |
| 10 | AIII / Ribbed | 4000 |
| 12 | AIII / Ribbed | 4000 |
| 14 | AIII / Ribbed | 4000 |
| 16 | AIII / Ribbed | 4000 |
| 18 | AIII / Ribbed | 4000 |
| 20 | AIII / Ribbed | 4000 |
| 22 | AIII / Ribbed | 4000 |
| 25 | AIII / Ribbed | 4000 |
| 28 | AIII / Ribbed | 4000 |
Reinforcing Steel Bar, Cold Drawn Bars, to Peru
Flat Bars & Cold Drawn Steel Bars as follows:
| COLD DRAWN BAR SAE1020 | |
| 3" | 15 |
| 1/4" | 8 |
| 5/16" | 8 |
| 3/8" | 10 |
| 1/2" | 10 |
| 9/16" | 8 |
| 5/8" | 8 |
| 3/4" | 15 |
| 2 1/2" | 8 |
| 90 | |
| HR BAR AS ROLLED SAE 1020 | |
| 75 | 60 |
| 83 | 10 |
| 89 | 15 |
| 100 | 10 |
| 115 | 10 |
| 120 | 8 |
| 130 | 10 |
| 123 | |
| HR BAR AS ROLLED SAE1045 | |
| 75 | 20 |
| 115 | 10 |
| 120 | 6 |
| 36 | |
| FLAT BAR A-36 | |
| 100 X 32mm | 6 |
| 100 X 38mm | 6 |
| 100 X 50mm | 6 |
| 125 X 12.5mm | 20 |
| 125 X 16mm | 20 |
| 125 X 19mm | 8 |
| 125 X 25mm | 8 |
| 150 X 12.5mm | 6 |
| 150 X 16mm | 6 |
| 150 X 19mm | 4 |
| 150 X 25mm | 4 |
| 94 | |
| Cold Drawn Steel Bar | |
| 12L14 (11SMnPb30) | |
| 3/4" | 20 |
Hot Rolled Deformed Reinforcing Steel Bars
Specification:
Hot rolled Deformed Reinforcing Steel Bars
BS4449/97, GRAD 460B, 7 to 25mm
12Meter Straight Length(Plus/Minus 50mm)
Round steel bar - Ribbed Bars
Hot rolled round steel bar
(ribbed)
Dimension standard
DIN 488
Quality standard
DIN 488
| Nominal diameter (d) | Nominal weight (kg/m) | Section area (mm2) |
| 8 | 0.395 | 50.3 |
| 10 | 0.617 | 78.5 |
| 12 | 0.888 | 113.0 |
| 14 | 1.210 | 154.0 |
| 16 | 1.580 | 201.0 |
| 18 | 2.000 | 254.4 |
| 20 | 2.470 | 314.0 |
| 22 | 2.985 | 380.0 |
| 25 | 3.850 | 491.0 |
| 26 | 4.168 | 531.0 |
| 28 | 4.830 | 616.0 |
| 30 | 5.550 | 706.0 |
| 32 | 6.310 | 804.0 |
| 40 | 9.860 | 1256.0 |
| Rib diameter (d) | Max. a1 | b1 | Max.b2 | a 1 | c |
| 8 | 0.8 | 0.8±0.32 | 0.8 | 0.4-0.8 | 0.5-8 |
| 10 | 1.0 | 1.0±0.40 | 1.0 | 0.5-1.0 | 0.5-10 |
| 12 | 1.2 | 1.2±0.48 | 1.2 | 0.6-1.2 | 0.5-12 |
| 14 | 1.4 | 1.4±0.56 | 1.4 | 0.7-1.4 | 0.5-14 |
| 16 | 1.6 | 1.6±0.64 | 1.6 | 0.8-1.6 | 0.5-16 |
| 18 | 1.8 | 1.8±0.72 | 1.8 | 0.9-1.8 | 0.5-18 |
| 20 | 2.0 | 2.0±0.80 | 2.0 | 1.0-2.0 | 0.5-20 |
| 22 | 2.2 | 2.2±0.88 | 2.2 | 1.1-2.2 | 0.5-22 |
| 25 | 2.5 | 2.5±1.00 | 2.5 | 1.25-2.5 | 0.5-25 |
| 26 | 2.6 | 2.6±1.04 | 2.6 | 1.30-2.6 | 0.5-26 |
| 28 | 2.8 | 2.8±1.12 | 2.8 | 1.40-2.8 | 0.5-28 |
| 30 | 3.0 | 3.0±1.2 | 3.0 | 1.50-3.0 | 0.5-30 |
| 32 | 3.2 | 3.2±1.28 | 3.2 | 1.60-3.2 | 0.5-32 |
| 40 | 4.0 | 4.0±1.60 | 4.0 | 2.00-4.0 | 0.5-40 |
Steel Angle Bars and Steel Flat Plates
Angle steel bar and steel flat plates for construction
Angle bars S235JR and S355JR with sizes from 40*40mm to 200*200mm.

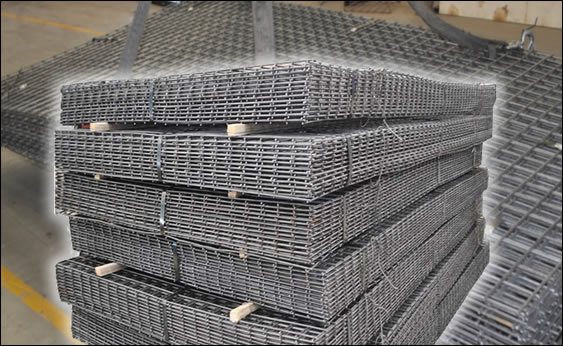

Ribbed Steel Rebar Welded Mesh Panels
Ribbed steel bars bonded via spot welding for slab and wall constructions. WWM fabric is commonly used with bar chairs as supports.
Reinforcing mesh grid, panel size 6m length 2.4m width, square mesh 200 200mm
Specifications:
| Nominal Pitch | Wire Size | Cross sectional area per meter width | Nominal | |||
| weight | ||||||
| Main Bar | Cross Bar | Main | Cross | main | cross | per m2 |
| 200 | 200 | 10 | 10 | 393 | 393 | 6.16 |
| 200 | 200 | 8 | 8 | 252 | 252 | 3.95 |
| 200 | 200 | 7 | 7 | 193 | 193 | 3.02 |
| 200 | 200 | 6 | 6 | 142 | 142 | 2.22 |
| 200 | 200 | 5 | 5 | 98 | 98 | 1.54 |
| 100 | 200 | 12 | 8 | 1131 | 252 | 10.9 |
| 100 | 200 | 10 | 8 | 785 | 252 | 8.14 |
| 100 | 200 | 8 | 8 | 503 | 252 | 5.93 |
| 100 | 200 | 7 | 7 | 385 | 193 | 4.53 |
| 100 | 200 | 6 | 7 | 283 | 193 | 3.73 |
| 100 | 200 | 5 | 7 | 196 | 193 | 3.05 |
| 100 | 400 | 10 | 6 | 785 | 70.8 | 6.72 |
| 100 | 400 | 9 | 6 | 636 | 70.8 | 5.55 |
| 100 | 400 | 8 | 5 | 503 | 49 | 4.34 |
| 100 | 400 | 7 | 5 | 385 | 49 | 3.41 |
| 100 | 400 | 6 | 5 | 283 | 49 | 2.61 |

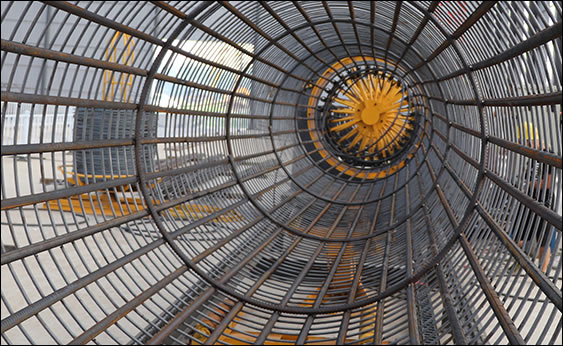

Concrete Reinforcing Steel Cages
Cage diameter 2500 in standard length 12000mm, fabricated with spiral wire and line bars by spot welding machine. Customized sizes available.

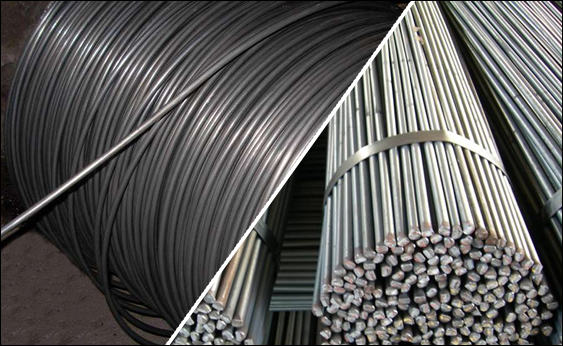

We also supply Round Plain Bars
Bright plain round bars in 6.5 to 12 mm
